How to read the icons on your terminal

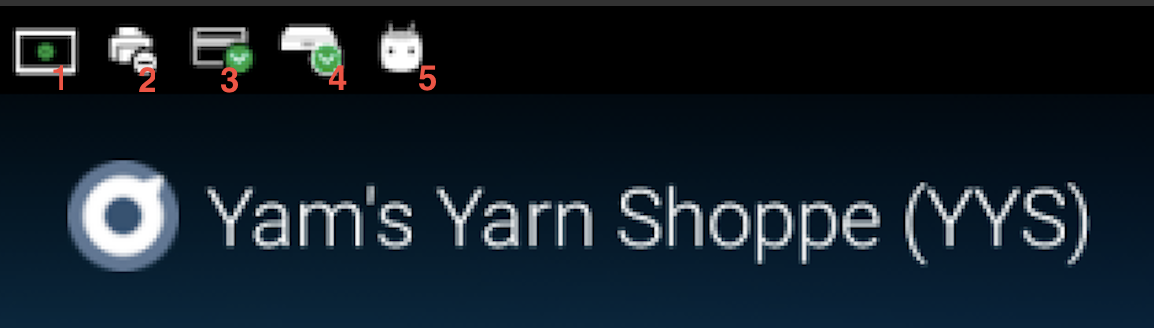

1.  Second Screen status:  shows if the customer facing screen is active (for P61 and P61b only)

2.  External peripherals (ie printers, cash drawers, etc):  in this case, not connected to an external printer

3.  Card reader status:  card reader active and able to process payments

4.  Internal printer status:  active and has paper

5.  USB:  connected to USB debugging

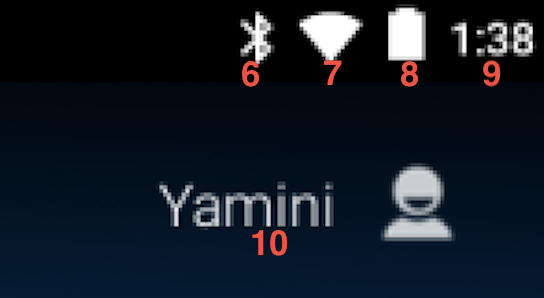

6.  Bluetooth:  notes if bluetooth is on; in this case Bluetooth is enabled and can be used to connect to various accessories

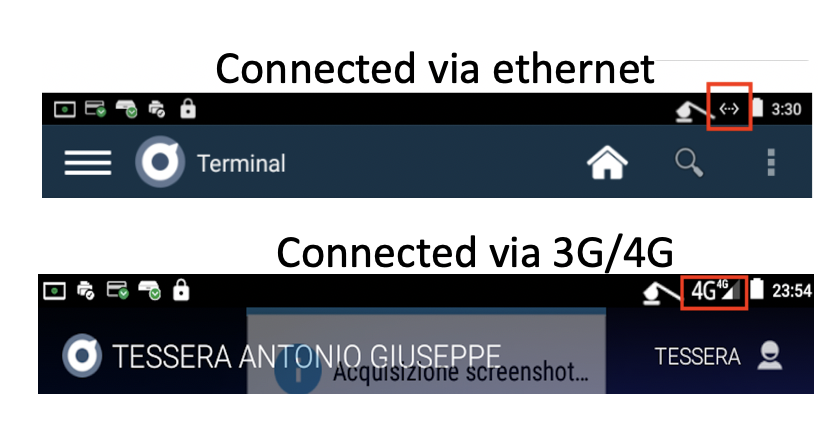

7.  Internet connectivity:  WIFi, ethernet or 3g connectivity; in the example above terminal is connected via WIFI (see below screenshots for other examples)

8.  Battery status:  charge left on the battery and if it is being charged

9.  Time:  current time based on device settings

10.  User:  shows which user is logged into the terminal

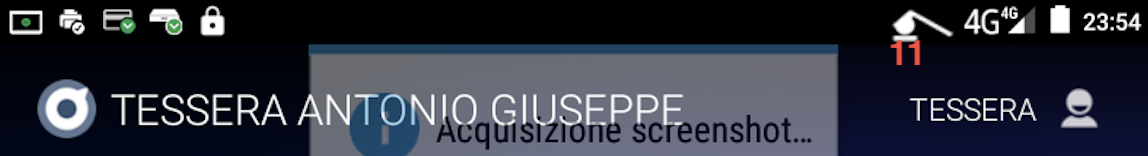

 11.  Dock:  indicates if terminal is on dock or off
