Configuring and connecting Poynt device via 3G Mobile Network

If using a 3G terminal, the Poynt device should already have the mobile network set up for you, along with a SIM card.  Follow the below steps if the mobile network has not been configured.

Configuring the mobile network

Your mobile network can be configured during activation or following activation from the 3G section of the slide-down menu. After inserting your SIM, some 3G connections will establish automatically. You'll also want to configure your WiFi connection as a fallback in the case that your 3G connection drops.

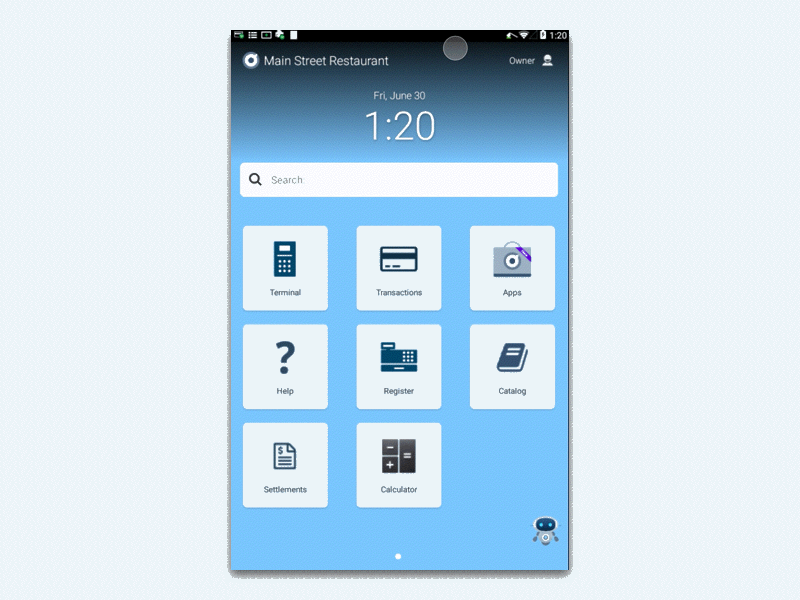

Step 1: Swipe-down on your Smart Terminal's screen (from any open application) to access the Settings and Notification menu. Swipe across and tap on the Mobile Network icon.

Step 2: Once you have the Mobile Network screen open, select Mobile Networks to modify any necessary settings. Then, select Access Point Names.

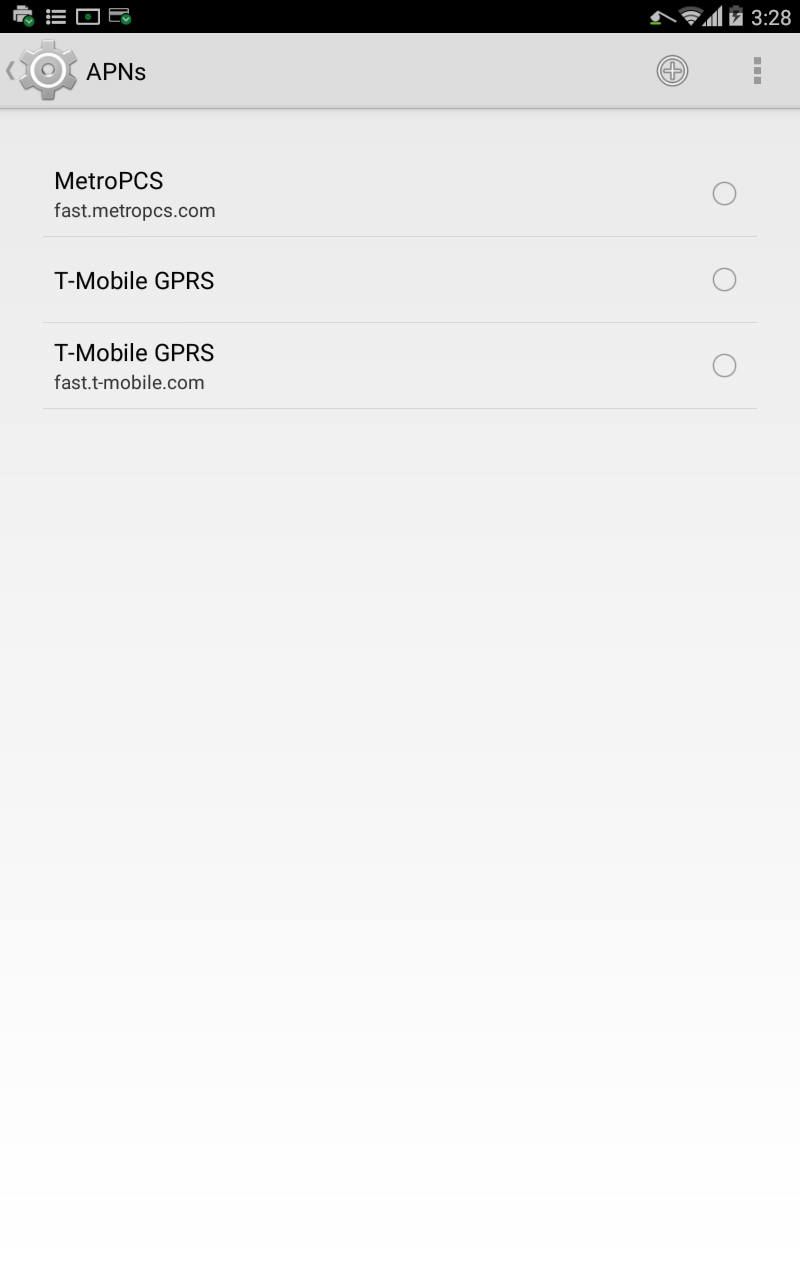

Step 3: Tap Access Point Names and select your APN from the list. If your APN does not appear, continue to Step 4.

Common APNs

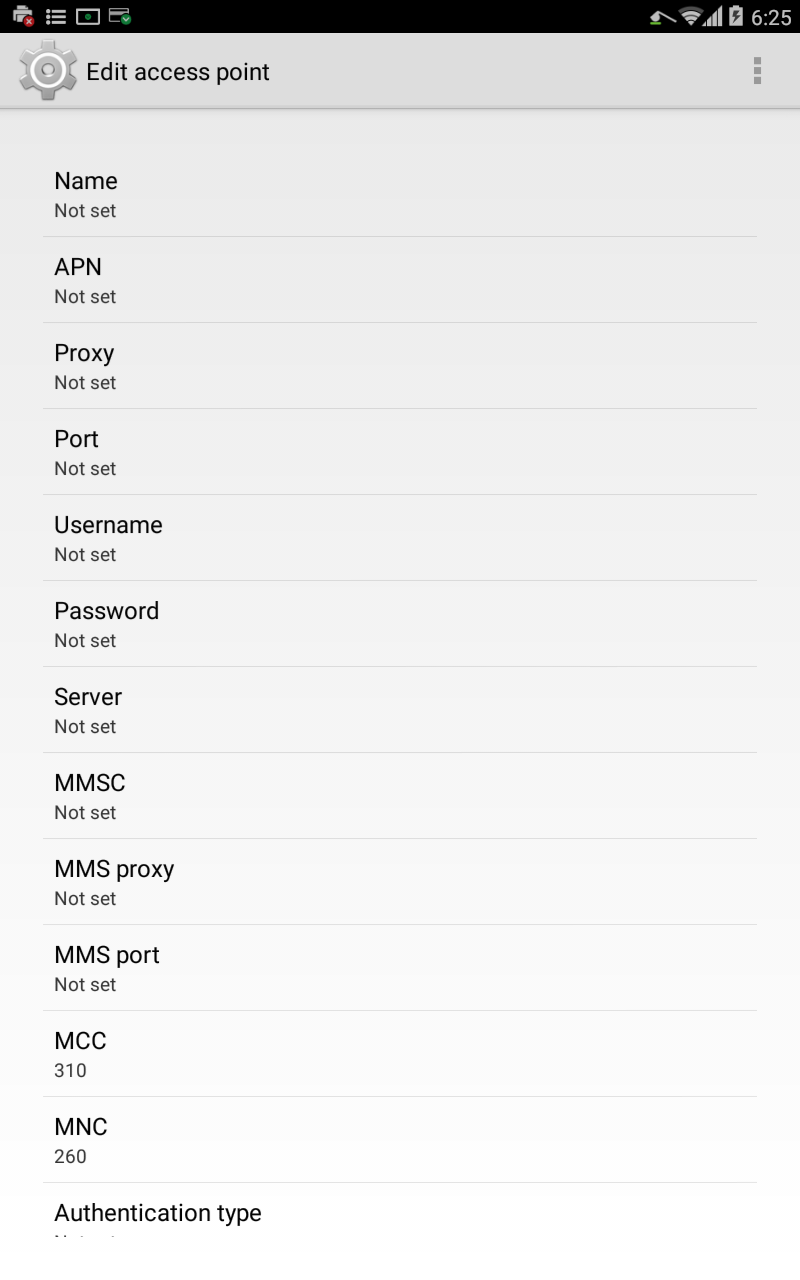

Step 4: If your APN does not appear in this list, you can enter it manually. Please reach out to your cellular provider or the organization from which you purchased the SIM to determine the APN.

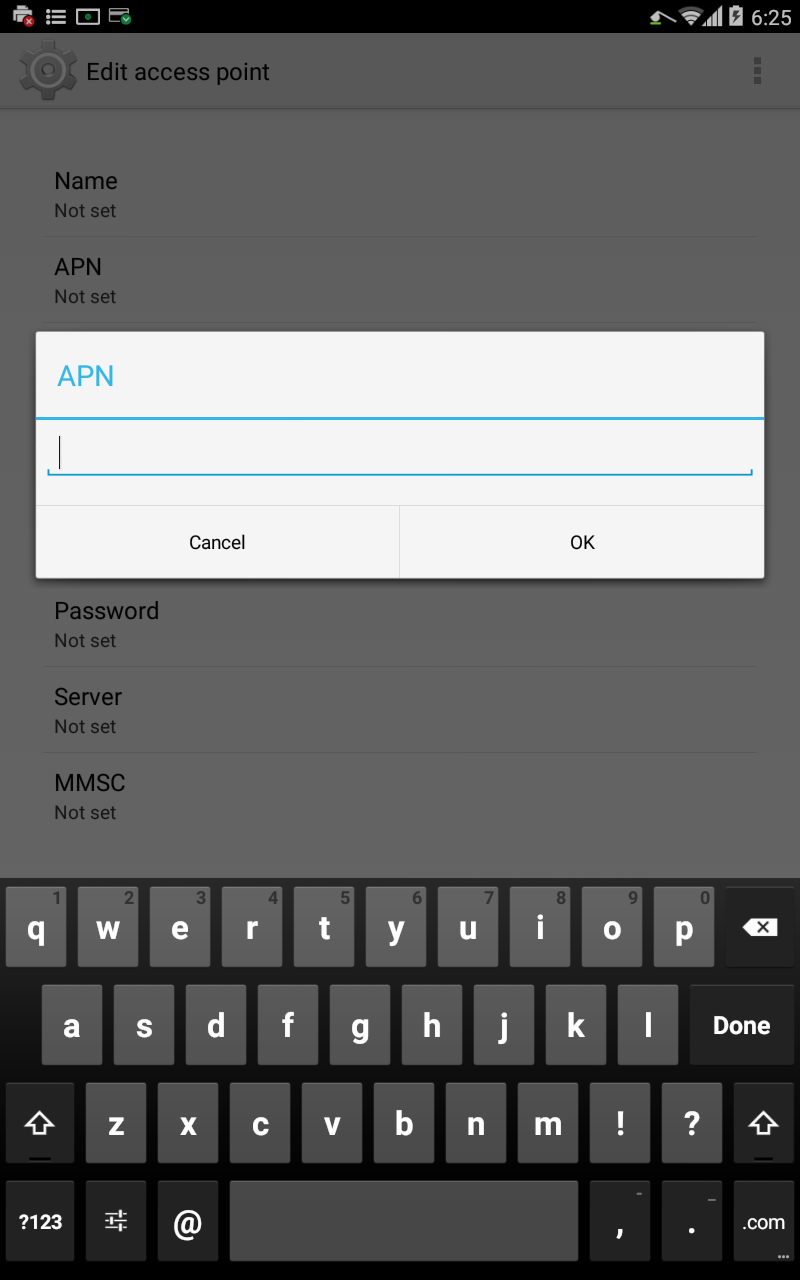

To enter the APN manually, select the plus sign and then "APN".

Once step 4 is complete, you can return to normal by swiping down on your screen and accessing Home from your swipe-down menu.
