How to insert or remove a 3G SIM Card?

Inserting SIM Card

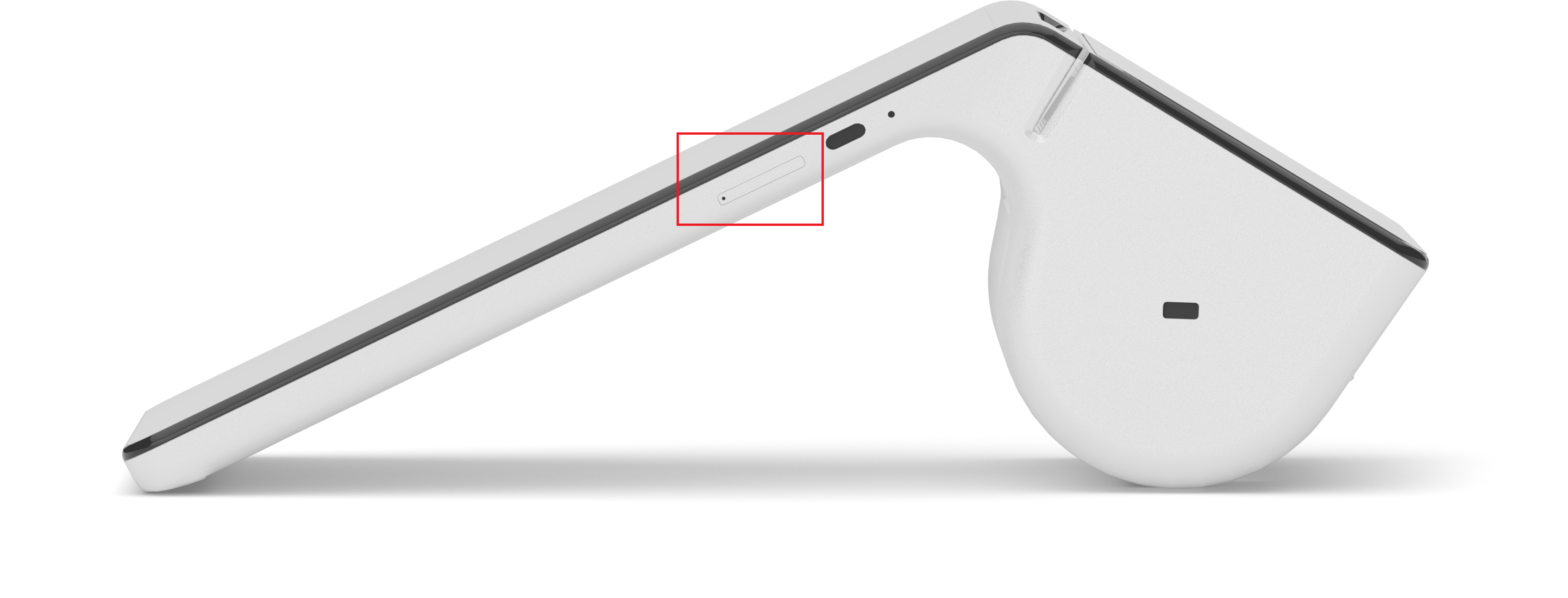

1. Open the printer hatch door and lay the device on its side so that the left side of the second screen is flush with a level surface (see image below)

2. Some models of Poynt P61s will have two card slots - one for an SD card and one for your SIM card. The SIM card goes into the longer slot. The correct slot is also indicated below (left).

Some other models P61s just have a SIM card slot (right). This one has a push-in-bounce-out mechanism so you may not need tweezers to remove the SIM card.

3. When inserting the SIM Card, make sure the notch on the SIM card is oriented so the upper right is inserted first with the gold contacts face up.

Make sure you are careful not to damage the connector pins in the slot. Gently push the SIM Card all the way into the slot.

Removing SIM Card

Step 1: Lay the device on its side on a flat surface

Step 2: Locate the SIM card slot. The P61 SIM card slot types may vary. Some models have a SIM card slot. Others have a push-in-bounce-out mechanism so you may not need tweezers to remove the SIM card.

Be very gentle with the SIM card as to not damage the connector pins in the slot.

Poynt C terminals

You can locate the slot at the right body side of the main screen you’ll need sharp needle-nose or a sim Card tool to extract the slot and insert the SIM card
